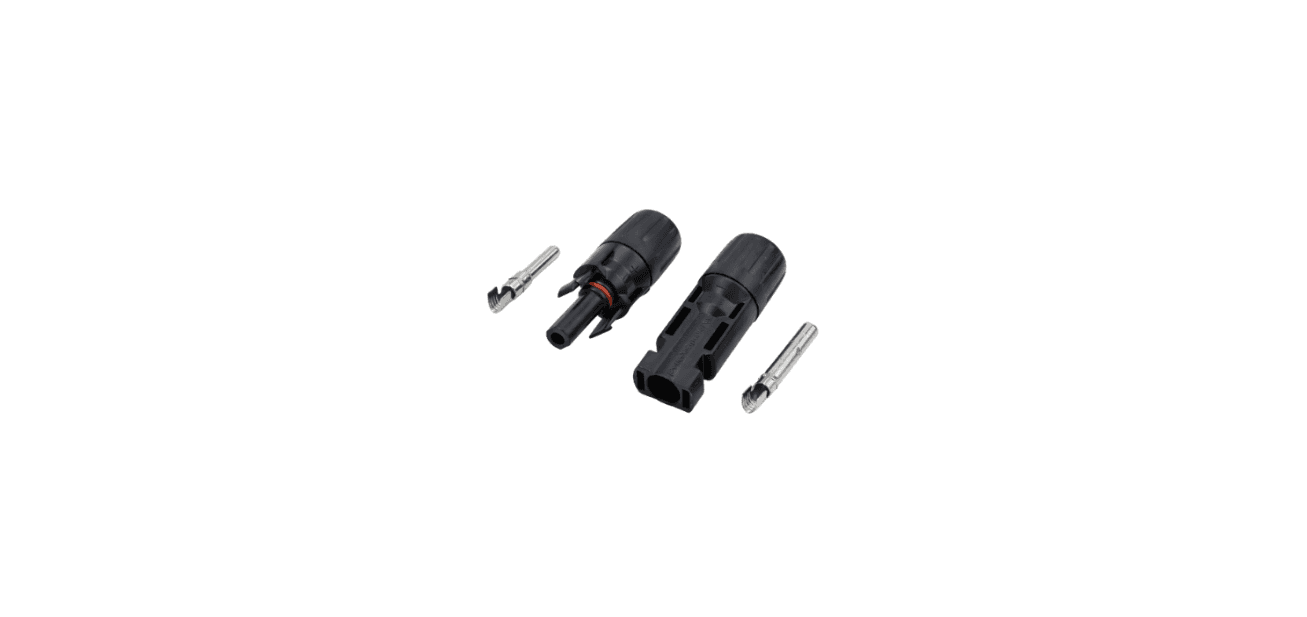

MC4 CONNECTOR
Used for connecting DC cables in solar panels. • Black plastic housing → Male / female MC4 connectors • Internal metal parts → Crimp terminals (pins) • Waterproof and UV-resistantCompatible with • 4 mm² – 6 mm² solar cables
Price5$+KDV
Technical Specifications
Rated Current30A
Rated Voltage：1000V DC (TUV) / 600V DC（UL)
Test Voltage:6KV(50Hz,1min)
Contact resistance of blug connectors:≤0.5mΩ
Safety Class：Class Ⅱ
Protection Degree,mated：IP67
Flame Class：UL94-V0(TUV) /5VA（UL）
Insulation Material：PC&PPO
Temperature Range：-40°C...+85°C (TUV)/ -40°C...+90°C (UL)
Wire Size Range：4-6mm2 (TUV) / 12AWG（UL)
